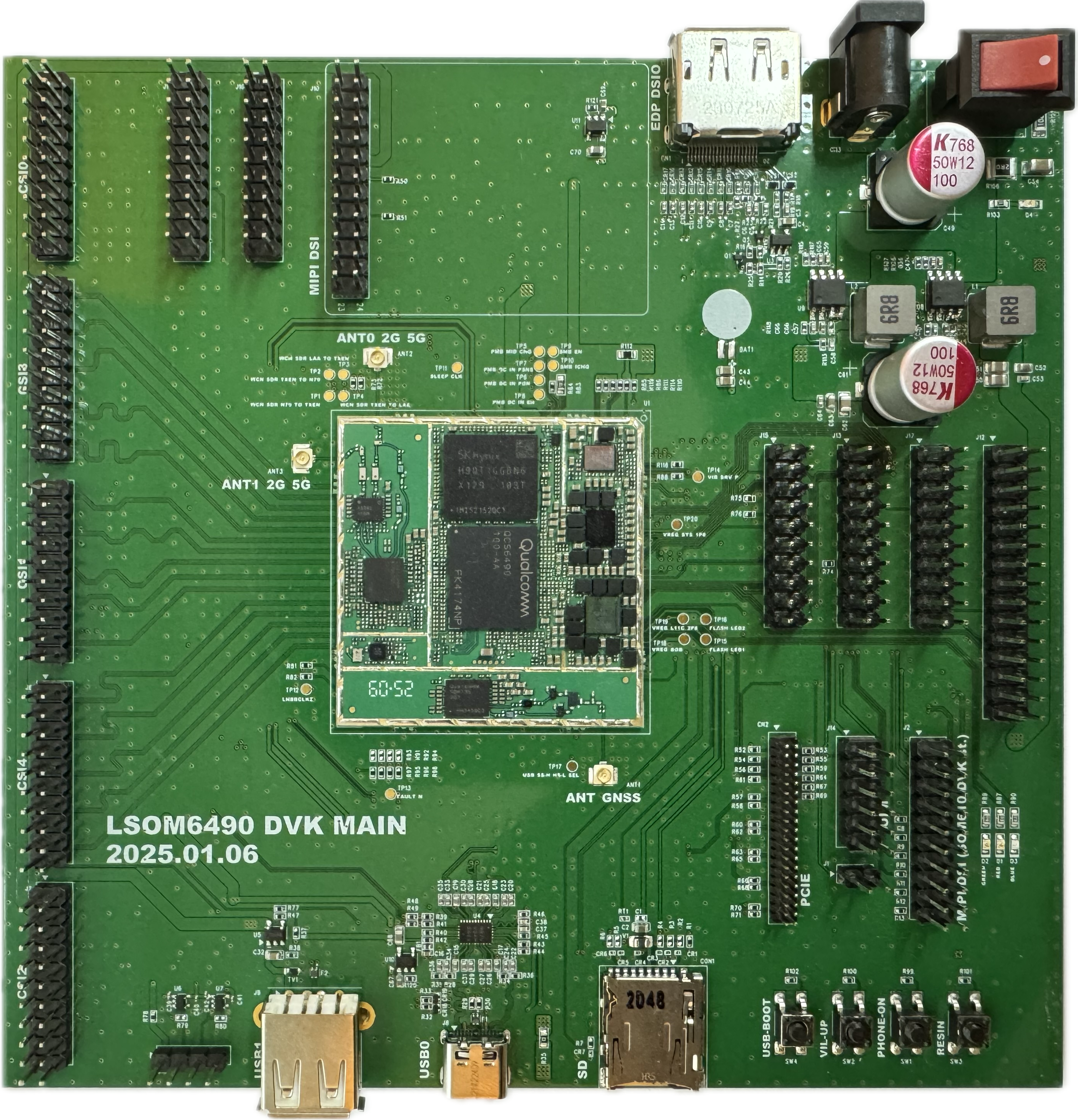

| AP Module |
|
LSOM6490 |
| Display |
|
Pin Header for 1 MIPI output
Active DP (eDP port) Connector
|
| Storage Expansion |
|
MicroSD card socket |
| USB |
|
1 USB Type C with VESA DisplayPort V1.3 support
1 USB 2.0 A
|
| Camera |
|
Pin header for 5 MIPI CSI (Expansion board for MIPI CSI) |
| Audio In/Out |
|
Soundwire® Interface / TX+RX 4 |
| GPIO / QUP |
|
6x20 Pin Headers for GPIO and QUP |
| Expansion interface |
|
Pin Header for 1 PCI Express 2.1 TX 2lane/RX 2lane |
| Buttons |
|
4 Tact Switch (PON, UP, DN, Fuse)
1 Toggle Power Supply Switch
|
| Wireless Communication |
|
WIFI and BT 2 Antenna connector(U.FL-R-SMT) |
| GNSS |
|
1 Antenna connector(U.FL-R-SMT) |
| LED |
|
3 LEDs |
| Debug |
|
Debug UART 3.0V IO |
| Power Jack Support |
|
DC005 (2PI) Support (12V@3A) doesn't need Main battery |
